Bonded Facades
What are Bonded Facades?

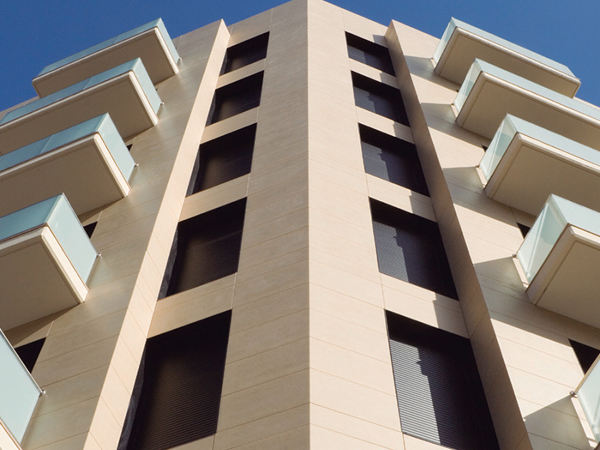

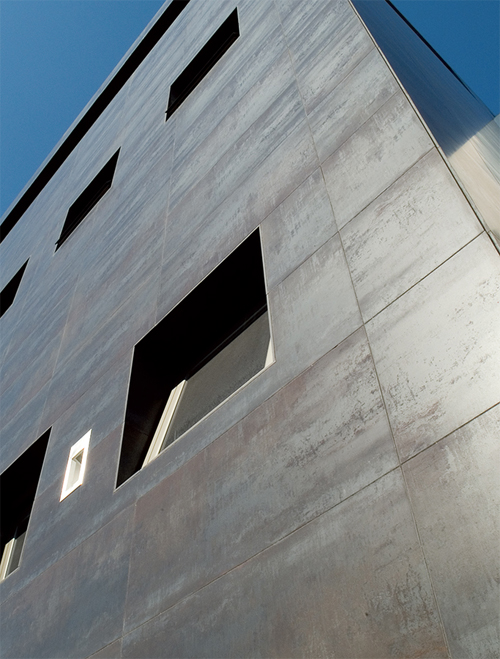

Ston-Ker bonded façades merge the beauty of a high-quality porcelain tile finish with other important aspects such as its lightweight, superior resistance to chemical and atmospheric agents, innovative design, and durability. The Ston-Ker bonded façade system, which has already made its mark as an exterior cladding system, looks set to revolutionize façades for a long time in the future.
Advantages
The Ston-Ker bonded façade system offers the following advantages over other bonded façade systems:
- Greater resistance to damp
- Greater resistance to atmospheric agents
- Greater resistance to water
- Greater versatility in terms of tile size and arrangements
- No color loss on façade
- Lightweight structure
- Minimum maintenance
- Anti-graffiti and self-cleaning properties
Concealed Fixings Bonded Facade
Innovative concealed fixing clip for porcelain tiles in bonded facades. The fixings fit within small slots done on the porcelain piece and are anchored to the support by a stainless steel screw. Once the joints are grouted, the fixings are not visible anymore, not affecting the facade design.
Butech / PORCELANOSA facade fixings have been designed as a security element in porcelain tile walls installed by the thin layer, double bonding method. We recommend the use of type C2 S2 cementitious adhesives as per EN 12004.
As a general rule, we recommend this kind of fixing from a height corresponding to first concrete slab. In any case, standards in force must be observed for every project.
Butech / PORCELANOSA facade fixings have been designed as a security element in porcelain tile walls installed by the thin layer, double bonding method. We recommend the use of type C2 S2 cementitious adhesives as per EN 12004.
As a general rule, we recommend this kind of fixing from a height corresponding to first concrete slab. In any case, standards in force must be observed for every project.
Visible Fixings Bonded Facade
Visible fixing clip for porcelain tiles in bonded facades. Fixings hold the porcelain tiles and are anchored to the support by a stainless steel screw. Once the joints are grouted, the fixings are visible, and a 13/64 “ clip can be seen.
Butech / PORCELANOSA facade fixings have been designed as a security element in porcelain tile walls installed by the thin layer, double bonding method. We recommend the use of type C2 S2 cementitious adhesives as per EN 12004.
As a general rule, we recommend this kind of fixing from a height corresponding to first concrete slab. In any case, standards in force must be observed for every project.
Butech / PORCELANOSA facade fixings have been designed as a security element in porcelain tile walls installed by the thin layer, double bonding method. We recommend the use of type C2 S2 cementitious adhesives as per EN 12004.
As a general rule, we recommend this kind of fixing from a height corresponding to first concrete slab. In any case, standards in force must be observed for every project.
